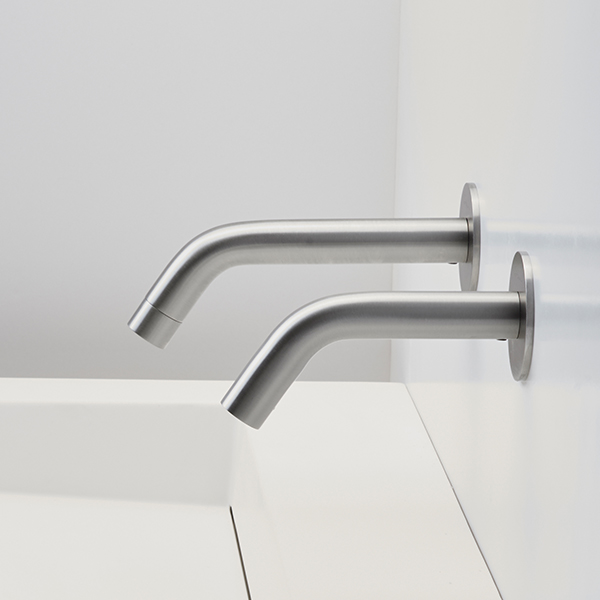

Extreme CS DP AISI 316 Touchless Wall Faucet

For cold or premixed water.
For concealed installation in brick walls.
IP67 dual power input box that allows the faucet to be used with 9V battery or 9V transformer.
Can be powered by a 9V transformer and an integrated back up system to be used with 9V lithium battery enabling the faucet to be used normally in case of power failure.
Stainless steel body, other finishes available.
Activated by concealed sensor built into the spout.
Filter included.
Sensor includes a low battery indicator.
Adjustable settings by remote control: sensor range, security time, delay in, delay out, on-off and reset to factory settings.

Technical info

Extreme CS DP B AISI 316 – 237802-316
Extreme CS DP E AISI 316 – 237803-316

Touch-free wall-mounted electronic commercial tap. For cold or premixed water. For concealed installation in brick walls. IP67 dual power input box that allows the faucet to be used with 9V battery or 9V transformer. Can be powered by a 9V transformer and an integrated back up system to be used with 9V lithium battery enabling the faucet to be used normally in case of power failure. Stainless steel body, other finishes available. Activated by concealed sensor built into the spout. Filter included. Sensor includes a low battery indicator. Adjustable settings by remote control: sensor range, security time, delay in, delay out, on-off and reset to factory settings.

Application

Wall-mounted faucet. Combines a minimalistic design with vandal resistant features. Helps washrooms stay clean and saves water. Ease installation. Long lasting even in the harshest installation sites. Ideal for shopping malls, sport facilities and entertainment centers.

Use
With Proximity sensor: The faucet will automatically activate when users place their hands in the sensor range and will stop once the users remove their hands.

With Wave on-off sensor: The faucet will activate for an 8-second flow time when users place their hands in close proximity to the sensor. Removing the hands stops the faucet operation. Flow time is adjustable on site.
