Smart 1000 L Touchless Deck Faucet

  • Touchless deck mounted faucet.
  • For hot and cold water, the faucet includes a mixer to adjust water temperature and filters.
  • Activated by an infrared sensor. Chrome plated body, other finishes available.
  • Includes a low battery indicator.
  • Latching solenoid valve is located above deck inside the product, which makes it more resistant to vandalism.
  • Installed as a regular faucet, simply connect the battery to complete the installation.
  • The following settings can be changed by using the Stern remote control: Sensor Range, Security Time, Delay In, Delay Out and On-Off.
  • A 24 hours mandatory hygiene flush can be provided upon request.

Technical info

Data Sheet
Installation Guide
BIM file

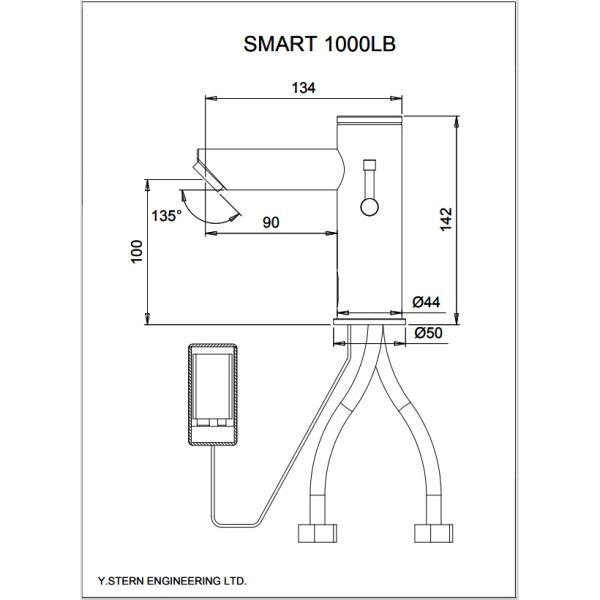

Smart 1000 LB – 235510
Product Drawing

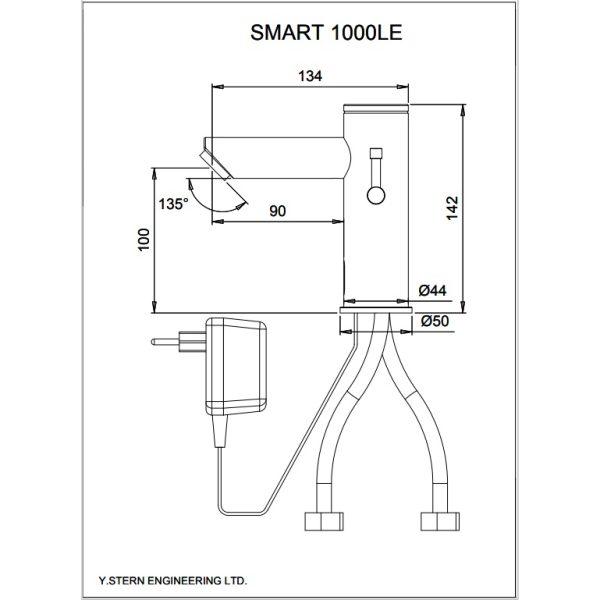

Smart 1000 LE – 235610
Product Drawing

Request Quote / More Info

For more information, please fill out the form below:

Description

Touch-free electronic faucet for deck mounted installations. Activated by infrared sensor. Long spout version. For hot and cold water. Includes a mixer for water temperature adjustment. Filters included. Chrome plated body, other finishes available. Latching solenoid valve is located above deck inside the product for added vandal protection. Regular faucet installation with simple connection: battery (Smart 1000 LB – 235510) or transformer (Smart 1000 LE – 235610). Adjustable settings by remote control: sensor range, security time, delay in, delay out, on-off and reset to factory settings. 24 hour mandatory hygiene flush available upon request.

Application:
Deck-mounted faucets. Combining an elegant minimalist design with anti-vandal features. Easy installation. Long lasting even in the harshest installation sites. Helps washrooms stay clean and saves water. Prevents cross contamination. Ideal for stadiums, train and bus stations and highway rest stops.

Use:
TTouch-free electronic faucet. The faucet is automatically activated when the users place their hands in the sensor range and stops when the users remove their hands.
