Downloads and Bim files
Configurations
Option 1: Standard Cubicle Assembly
Cubicles set against one existing wall ending
with an HPL Terminating wall with HPL partitions and a functioning automatic door mechanism.
Includes:
- Door assembly
- Pilaster with the lock mechanism
- Pilaster with an automatic door closer
- Partition
- Terminating wall
![Touchless Cubicle Bim and Configurations | Option 1 Standard Cubicle Assembly Option-1_Standard-Cubicle-Assembly](https://i0.wp.com/sternfaucets.com/wp-content/uploads/2023/12/Option-1_Standard-Cubicle-Assembly.jpg?fit=300%2C300&ssl=1)

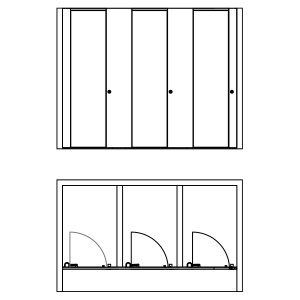

Option 2: Cubicle Door Assembly
A functioning toilet door set between two walls, commonly used where solid walls have been built to partition each toilet.
Includes:
- Door assembly
- Pilaster with the lock mechanism
- Pilaster with an automatic door closer
![Touchless Cubicle Bim and Configurations | Option 2 Cubicle Door Assembly Option-2_Cubicle-Door-Assembly](https://i0.wp.com/sternfaucets.com/wp-content/uploads/2023/12/Option-2_Cubicle-Door-Assembly.jpg?fit=300%2C300&ssl=1)

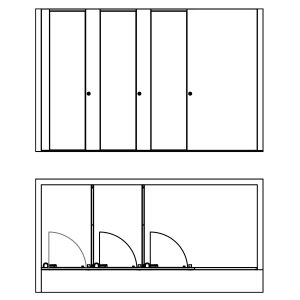

Option 3: Inline Toilet Cubicle
Inline toilet cubicles set against a side wall with the side cubicle partition running on the same axis as the toilet cubicle door (when closed).
Includes:
- Door assembly
- Pilaster with the lock mechanism
- Pilaster with an automatic door closer
- Partition
- HPL front wall
![Touchless Cubicle Bim and Configurations | Option 3 Inline Toilet Cubicle Option-3_Inline-Toilet-Cubicle](https://i0.wp.com/sternfaucets.com/wp-content/uploads/2023/12/Option-3_Inline-Toilet-Cubicle.jpg?fit=300%2C300&ssl=1)

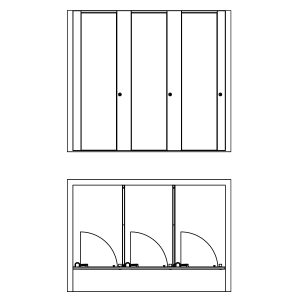

Option 4: Between Walls
Cubicles configured between two walls, with
the first cubicle set into the corner wall and the last terminated by a solid wall. No additional terminating cubicle partition panel required.
Includes:
- Door assembly
- Pilaster with the lock mechanism
- Pilaster with an automatic door closer
- Partition
![Touchless Cubicle Bim and Configurations | Option 4 Between Walls Option-4_Between-Walls](https://i0.wp.com/sternfaucets.com/wp-content/uploads/2023/12/Option-4_Between-Walls.jpg?fit=300%2C300&ssl=1)

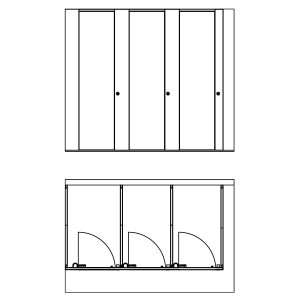

Option 5: Island toilet cubicles
Cubicles configured between two walls, with
the first cubicle set into the corner wall and
the last terminated by a solid wall. No additional terminating cubicle partition panel required.
Includes:
- Door assembly
- Pilaster with the lock mechanism
- Pilaster with an automatic external door closer
- Partition
- Two terminating walls
![Touchless Cubicle Bim and Configurations | Option 5 Island toilet cubicles Option-5_Island-toilet-cubicles](https://i0.wp.com/sternfaucets.com/wp-content/uploads/2023/12/Option-5_Island-toilet-cubicles.jpg?fit=300%2C300&ssl=1)

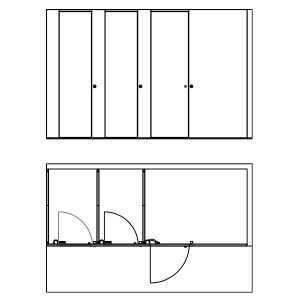

Option 6: Accessible Cubicle
Cubicles configured between two walls, with the first cubicle set into the corner wall and the last terminated by a solid wall. No additional terminating cubicle partition panel required.
Includes:
- Door assembly fitting relevant standards
- Pilaster with the lock mechanism
- Pilaster with an automatic/Manual external door closer
- Partition
![Touchless Cubicle Bim and Configurations | Option 6 Accessible Cubicle Option-6_Accessible-Cubicle](https://i0.wp.com/sternfaucets.com/wp-content/uploads/2023/12/Option-6_Accessible-Cubicle.jpg?fit=300%2C300&ssl=1)
