Smart Touchless Deck Mounted Faucet
- Touch free electronic tap for deck mounted installations.
- For cold or premixed water.
- Filter included. Activated by an infrared sensor.
- Chrome plated body, other finishes available.
- Includes a low battery indicator.
- Latching solenoid valve is located above deck inside the product, which makes it more resistant to vandalism.
- Installed as a regular faucet, simply connect the transformer to complete the installation.
- The following settings can be changed by using the Stern remote control: Sensor Range, Security Time, Delay In, Delay Out and On-Off.
- A 24 hours mandatory hygiene flush can be provided upon request.
Technical info
Data Sheet
Installation Guide
BIM file

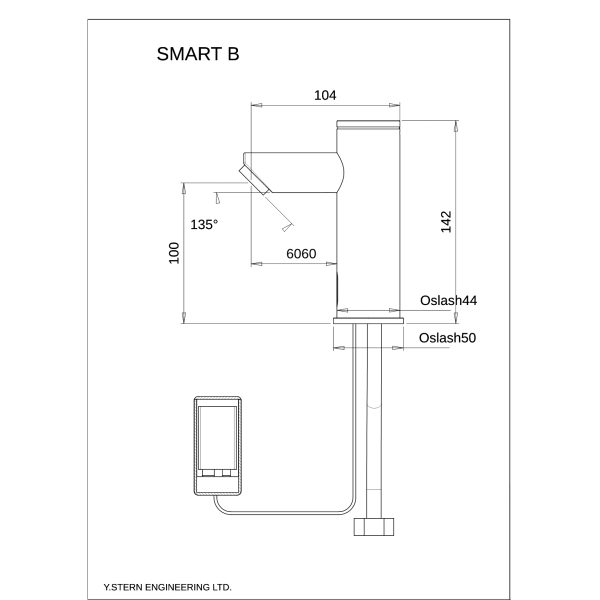

Smart B – 235100
Product Drawing

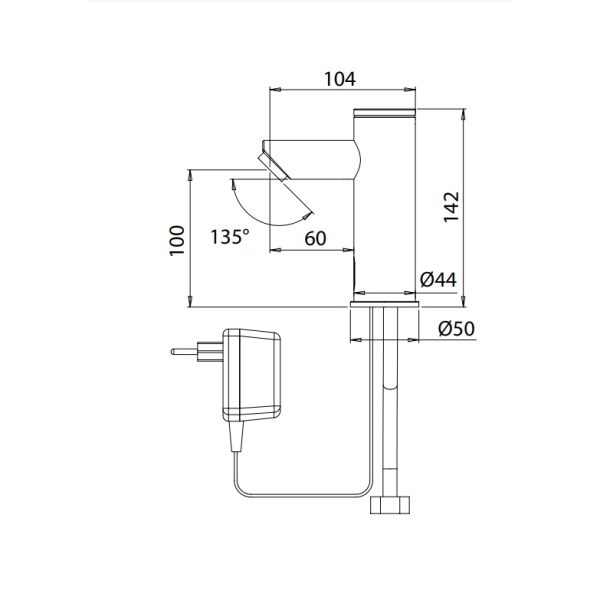

Smart E – 235200
Product Drawing
Request Quote / More Info
For more information, please fill out the form below:
Touch free electronic commercial tap for deck mounted installations. Activated by an infrared sensor. For cold or premixed water. Filters included. Chrome plated body, other finishes available. Includes a low battery indicator. Latching solenoid valve is located above deck inside the product for added vandal protection.
Regular faucet installation with simple battery connection (Smart B – 235100) or transformer connection (Smart E – 235200).
Adjustable setting by remote control: sensor range, security time, delay in, delay out, on-off and reset to factory settings. 24 hour mandatory hygiene flush available upon request.
Application:
Deck-mounted faucets. Combining an elegant minimalist design with anti-vandal features. Easy installation. Long lasting even in the harshest installation sites. Helps washrooms stay clean and saves water. Prevents cross contamination. Ideal for stadiums, train and bus stations and highway rest stops.
Use:
Touch-free electronic faucet. The faucet is automatically activated when the users place their hands in the sensor range and stops when the users remove their hands.
| Power source |
9V Alkaline Battery ,9V Transformer |
|---|---|
| Installation |
Deck Mounted |
| Water supply |
Cold or premixed water (1 inlet) |
