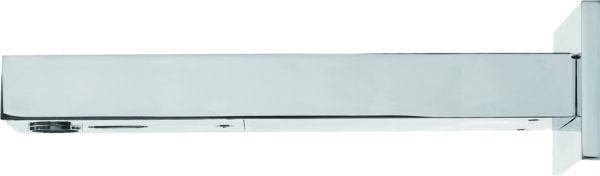

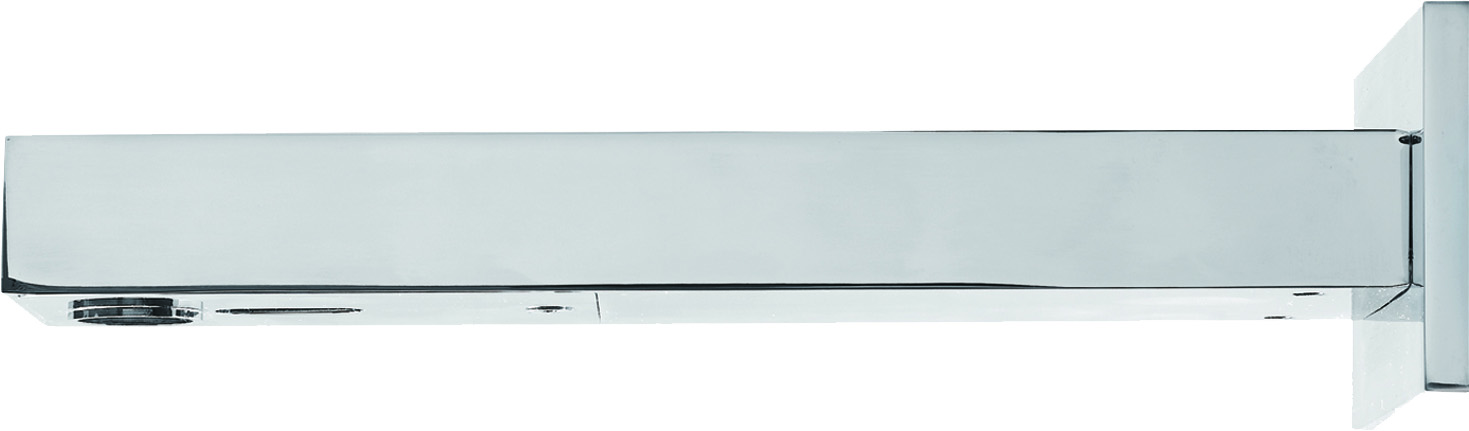

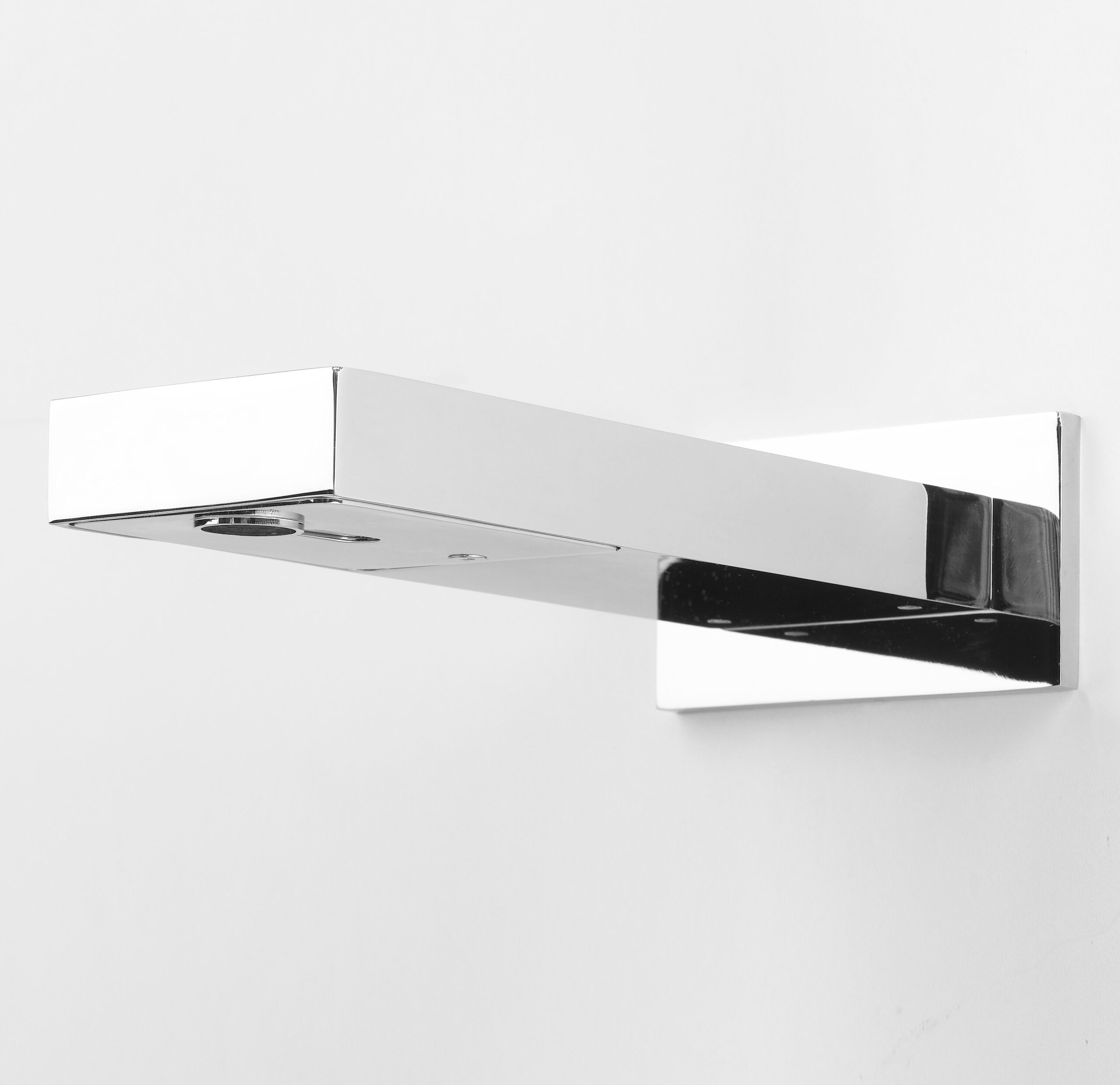

CUBICA TOUCH-FREE ELECTRONIC WALL-MOUNTED FAUCET
- Touch-free wall-mounted electronic faucet.
- Activated by an infrared sensor.
- For cold or premixed water.
- Powered by a 9V battery or a 9V transformer.
- Battery version includes a low battery level indicator.
- Chrome plated body, other finishes available.
- The faucet will automatically shut off after being used for more than 90 seconds.
- Adjustable setting by remote control: sensor range, security time, delay in, delay out, on-off and reset to factory settings.
Technical info
Data Sheet – B
Data Sheet – E
Installation Guide
CUBICA B – 360100
CUBICA E – 360200
CUBICA DP B – 360110
CUBICADP E – 360210
Request Quote / More Info
For more information, please fill out the form below:
APPLICATION
Touch-free electronic faucet operated by an infrared sensor. The faucet automatically activates when users place their hands within sensor range and stops when they remove them from the sensor range.
USE
Wall-mounted faucet combining an elegant rectangular design with anti-vandal features. Long lasting even in the harshest installation sites. Helps washrooms cleanliness, saves water and aids in cross contamination prevention. Ideal for shopping malls, sport facilities and commercial and entertainment centers.
| Power source |
9V Lithium Battery ,9V Transformer |
|---|---|
| Installation |
Wall mounted duct concealed |
| Water supply |
Cold or premixed water (1 inlet) |
