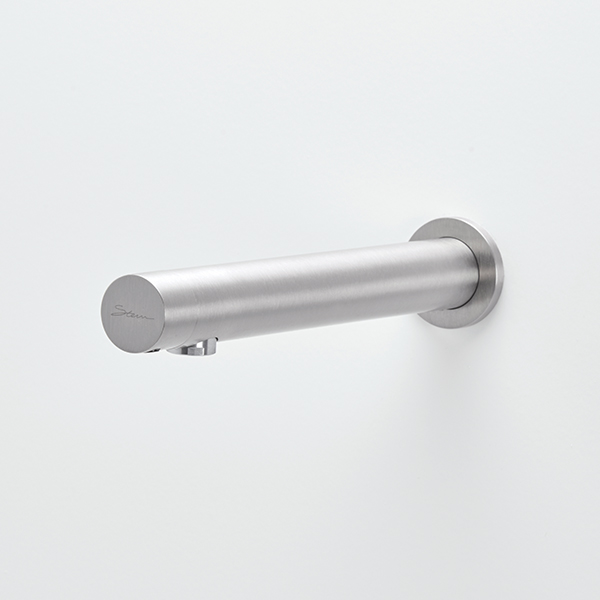

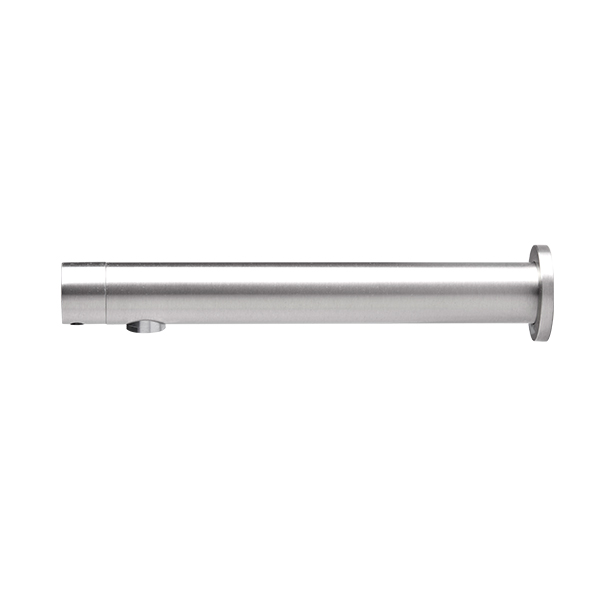

D28 DP AISI 316 Touchless Wall Faucet

Activated by an infrared sensor.
For cold or premixed water.
Stainless Steel AISI316, other finishes available.
Latching solenoid valve is located in the IP67 water proof dual power input box.
Adjustable settings by remote control: sensor range, security time, delay in, delay out, on-off and reset to factory settings.

Technical info

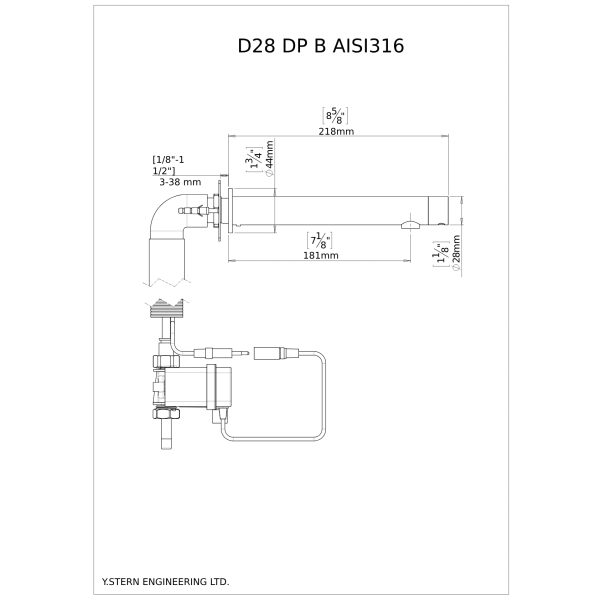

D28 DPB AISI 316 – 352015
Product Drawing

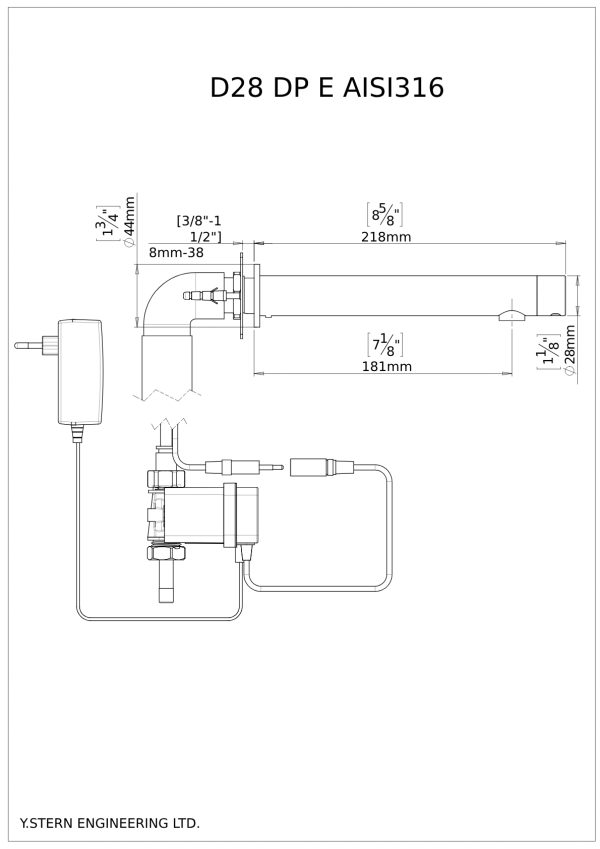

D28 DPE AISI 316 – 352401
Product Drawing

Touch-free wall-mounted electronic commercial tap. Activated by an infrared sensor. For cold or premixed water. Stainless Steel AISI316, other finishes available. Latching solenoid valve is located in the IP67 water proof dual power input box. Adjustable settings by remote control: sensor range, security time, delay in, delay out, on-off and reset to factory settings.

Application

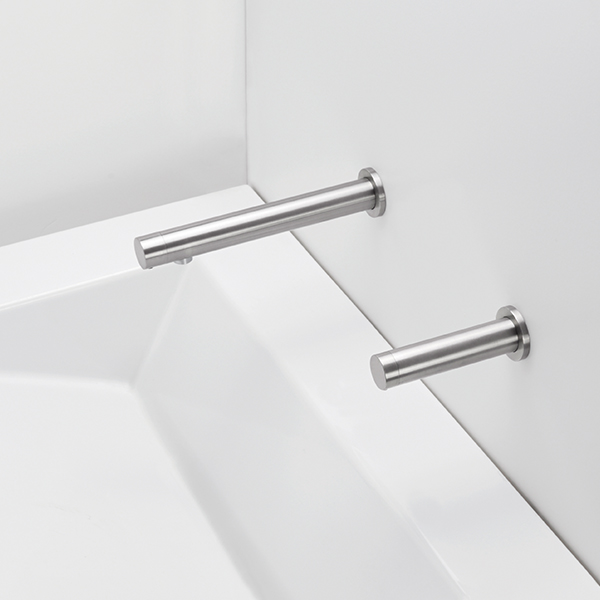

Wall-mounted faucet. Combines a minimalistic design with vandal resistant features. Helps washrooms stay clean and saves water. Easy installation. Long lasting even in the harshest installation sites. Ideal for shopping malls, sport facilities and entertainment centers.

Use

The faucet will automatically activate when users place their hands in the sensor range and will stop once the users remove their hands.

Power source	9V Alkaline Battery , 9V Transformer
Installation	Wall mounted duct concealed
Water supply	Cold or premixed water (1 inlet)
Features	Stainless steel

Power source

9V Alkaline Battery

9V Transformer

Installation

Wall mounted duct concealed

Water supply

Cold or premixed water (1 inlet)

Features

Stainless steel
